NT T6

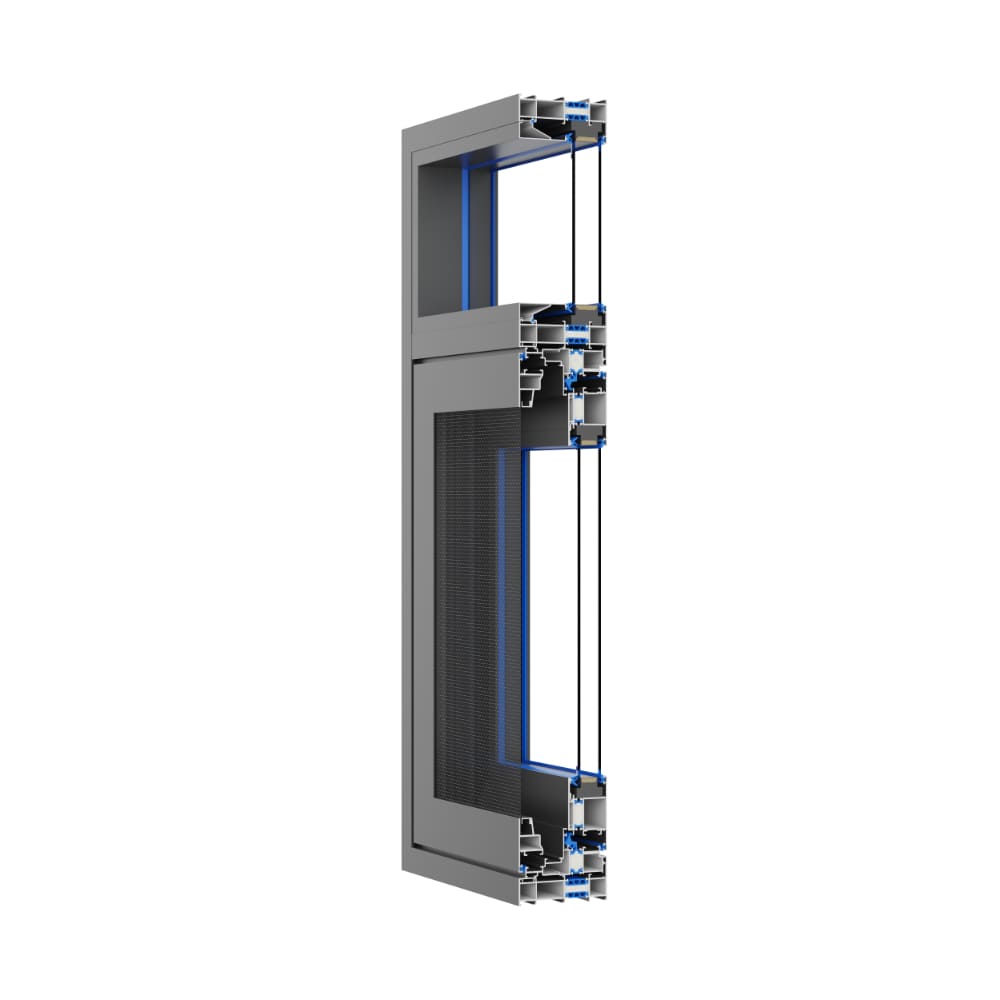

6063 T5 aluminum profile, with an average thickness of 1.8mm, hardware assembly area of 4.0mm, frame structure depth of 106mm, window sash structure depth of 47mm; indoor frame sash is flush
National standard 28mm+14.8T insulation strip [PA 66 GF25 nylon&glass fiber special composite reinforcement material]
European standard soft and hard composite foam rubber strip [glass outer composite foam rubber shock-absorbing sealing strip+glass inner shock-absorbing sealing strip+open pressure three way sealing structure]
Glass: Frame (5+24A (fluorocarbon ash)+5)/Fan (5+20A (fluorocarbon ash)+5) double-layer tempered reinforced glass
Suggested size for opening the fan (box): 680 * 1380, size 2: 600 * 1250480 ≤ W ≤ 750; 500≤H≤1550
Minimum chargeable area: 1.0m²/frame
Maximum size of external window (frame): maximum size within 780 * 1500, [maximum size of swing door (frame): 900 * 2500]
Equipped with 60 # black square hole diamond mesh
The frame, fan, and center frame are all equipped with double pin adhesive corner codes. [The full set comes standard with adhesive injection, but the frame can be optionally left without adhesive injection. Please specify when placing an order]
External suspension system comes standard with HOPO
Surface treatment process warranty for 15 years

EXTERNAL OPENING SYSTEM WINDOW
