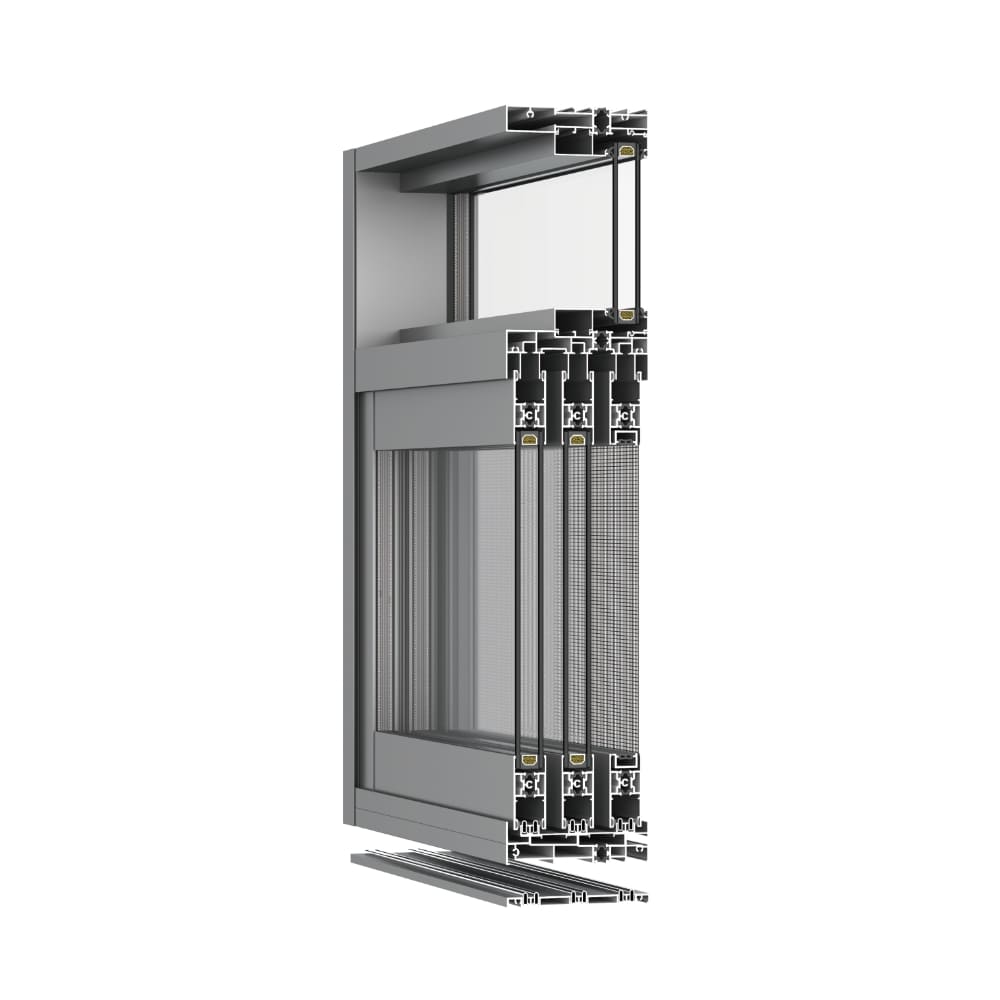

NT T54

6063 T5 aluminum profile, frame profile 1.5mm-2.0mm, fan profile 2.0mm-2.6mm, six track frame structure depth 140mm, window sash structure depth 52 * 34m
National standard 14.8mm C-type [PA66 GF25 nylon&glass fiber special composite reinforcement material]
European standard EPDM rubber strip [glass outer composite foam rubber shock-absorbing sealing strip+glass inner shock-absorbing sealing strip]
The fan is embedded in the frame structure, and the opening part is sealed with multiple layers of rubber strips and clip type sealing wool strips
Hidden drainage structure, with butyl rubber professional waterproof gasket at the end of the track, with a service life of over 15 years and ultra-high water tightness
Standard configuration: 5+16A (fluorocarbon gray)+5 double-layer tempered reinforced glass
Opening fan (frame) size: 350 ≤ W ≤ 1100, 1500 ≤ H ≤ 2300, total width ≥ 3600. It is not recommended to use window heads
Standard 40 # square hole black diamond mesh, the mesh can be placed indoors or outdoors;
Automatic one character lock+anti swing and anti drop upper wheel
Six track design, double row load-bearing ground wheels
Surface treatment process warranty for 15 years

BRIDGE CUTTING LIGHT SLIDING DOOR
