NT P7

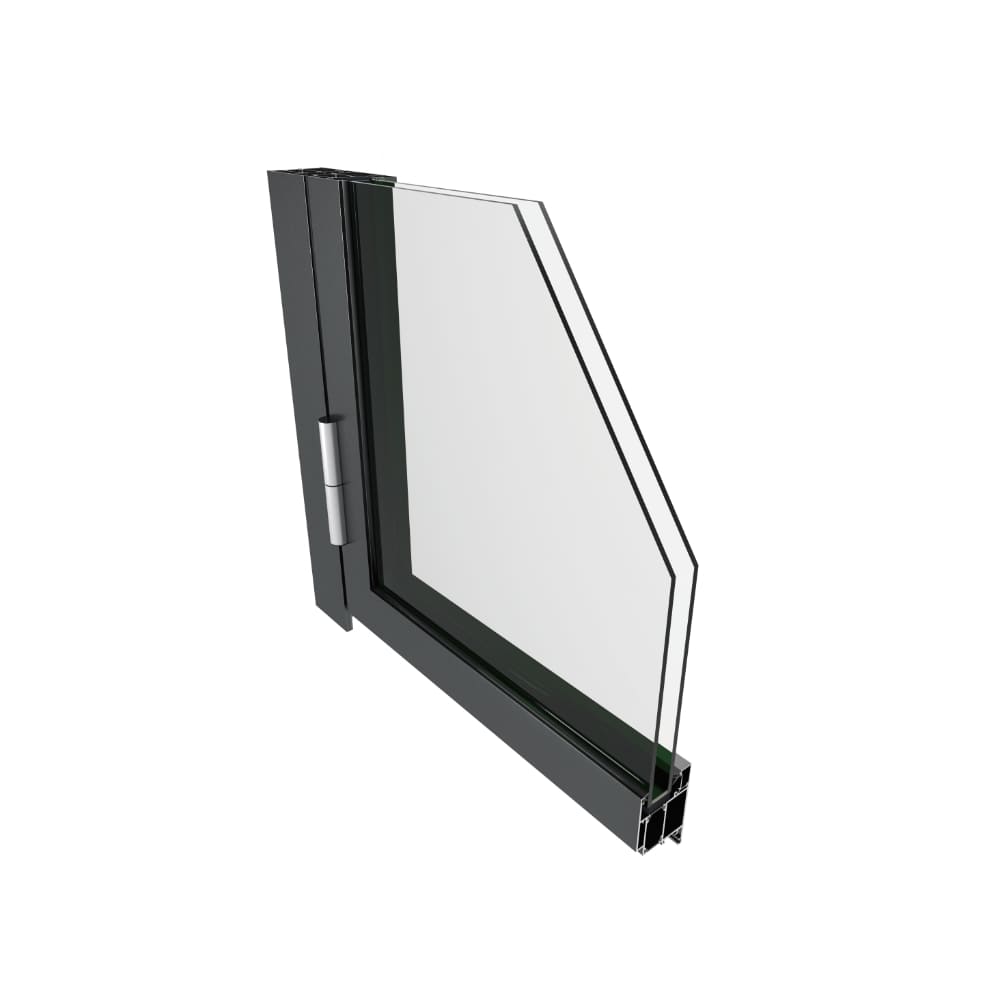

6063 T5 aluminum profile, with a main wall thickness of 2.2mm, a frame structure depth of 72mm, and a window sash structure depth of 72mm; the indoor outer frame sash is flush and comes standard with a low level rail
National standard 25.3mm T-shaped insulation strip [PA 66 GF25 nylon&glass fiber special composite reinforcement material]
Soft hard composite foam rubber strip [glass outer composite foam rubber shock-absorbing sealing strip+glass inner shock-absorbing sealing strip+open pressure three way sealing structure]
5+27A (fluorocarbon ash)+5 double-layer tempered reinforced glass
Suggested size for opening the fan (box): 850 * 2300, size 2: 900 * 2400
Maximum size of door leaf (frame): 1000 * 2600
The frame, fan, and center frame are all equipped with double pin adhesive corner codes. [The full set comes standard with adhesive injection, but the frame can be optionally left without adhesive injection. Please specify when placing an order]
Surface treatment process warranty for 15 years

HEAVY-DUTY SWING DOOR WITH BROKEN BRIDGE
