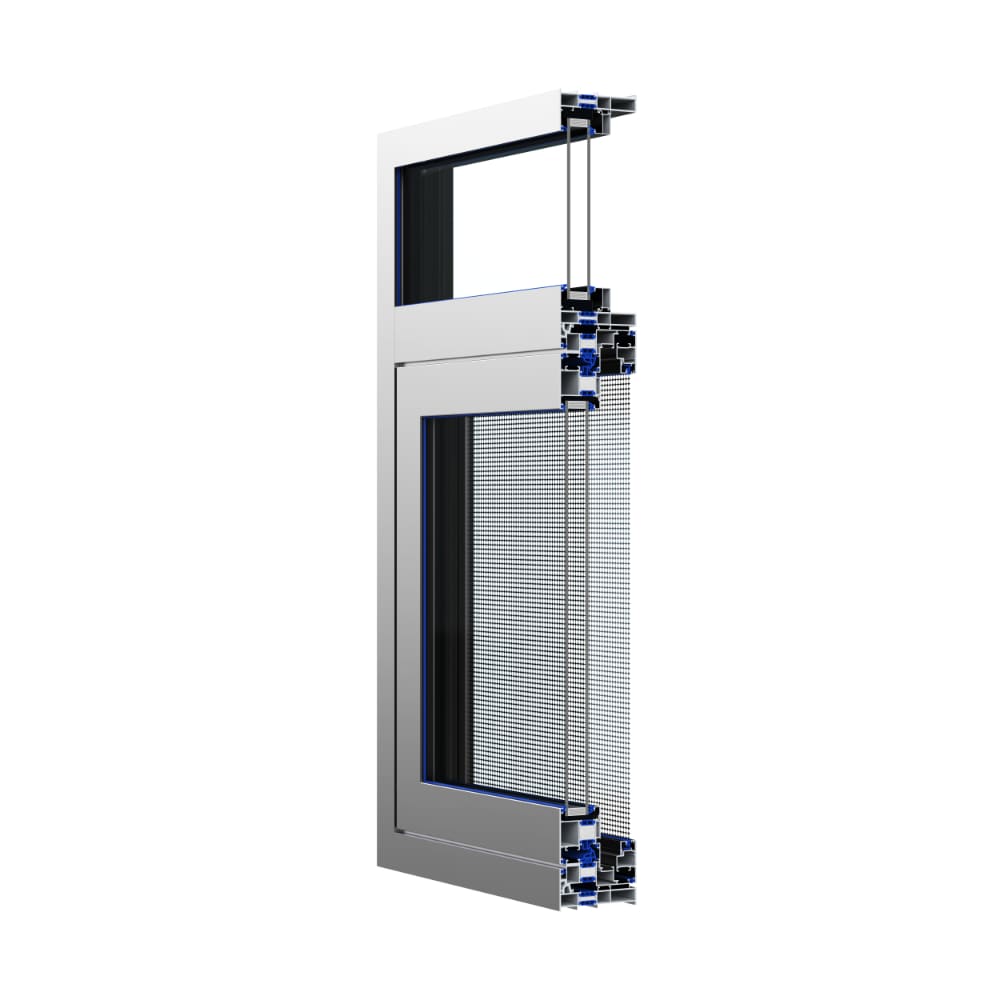

NT 123

EXTERNAL OPENING SYSTEM WINDOW

Product Configuration

  1. 6063 T5 aluminum profile, with a main frame wall thickness of 2.5mm, hardware load-bearing wall thickness of 5.0, frame structure depth of 122mm, and window sash structure depth of 65mm; Indoor outer frame fan is flush
  2. National standard 25mm multi cavity insulation strip [PA 66 GF25 nylon&glass fiber special composite reinforcement material]
  3. European standard soft and hard composite foam rubber strip [glass outer composite foam rubber shock-absorbing sealing strip+glass inner shock-absorbing sealing strip+open pressure three way sealing structure]
  4. Fixed glass: 5+27A (fluorocarbon ash)+5 double-layer tempered reinforced glass; Window sash glass: 5+27A (fluorocarbon ash)+5 double-layer tempered reinforced glass
  5. Standard 60 # square hole black diamond mesh [can be upgraded to imported fiber mesh for free]
  6. The external suspension system comes standard with HOPO system hardware; Flat doors come standard with Homan hardware
  7. Ultra high glass installation slot, exceeding the height of peers by 6mm, ensuring the safety of large glass
  8. The frame, fan, and center frame are all equipped with double pin adhesive corner codes [with adhesive injection standard in all directions, the frame body can be optionally non adhesive, please specify when placing an order]
  9. Window sash limit (W * H) (frame): 480 ≤ W ≤ 800; 500≤H≤1550
  10. Door leaf limit (W * H) (frame): 400 ≤ W ≤ 950; 1800≤H≤2800
  11. Flat doors come standard with low rails, while double doors come standard with active fan handles. Passive fans do not come standard with handles
  12. Surface treatment process warranty for 15 years

Regular Colors

Outdoor color
Carbon Ash
Jupiter Coffe
Elite Coffe
Indoor color
Carbon Ash
Skin White
Elite Coffe
Champagne Grey
