NA T92

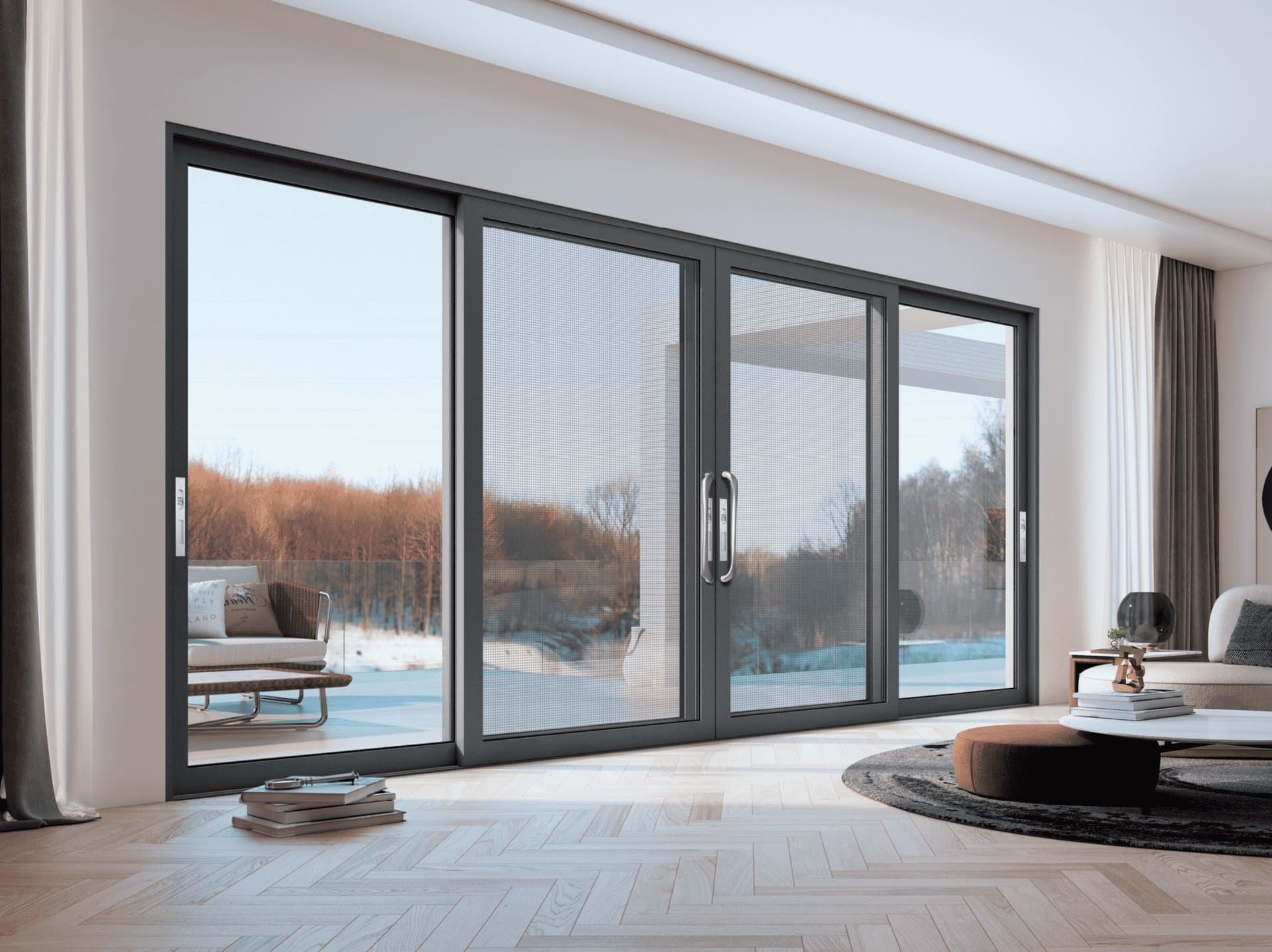

NON BROKEN BRIDGE HEAVY-DUTY SLIDING DOOR

Product Configuration

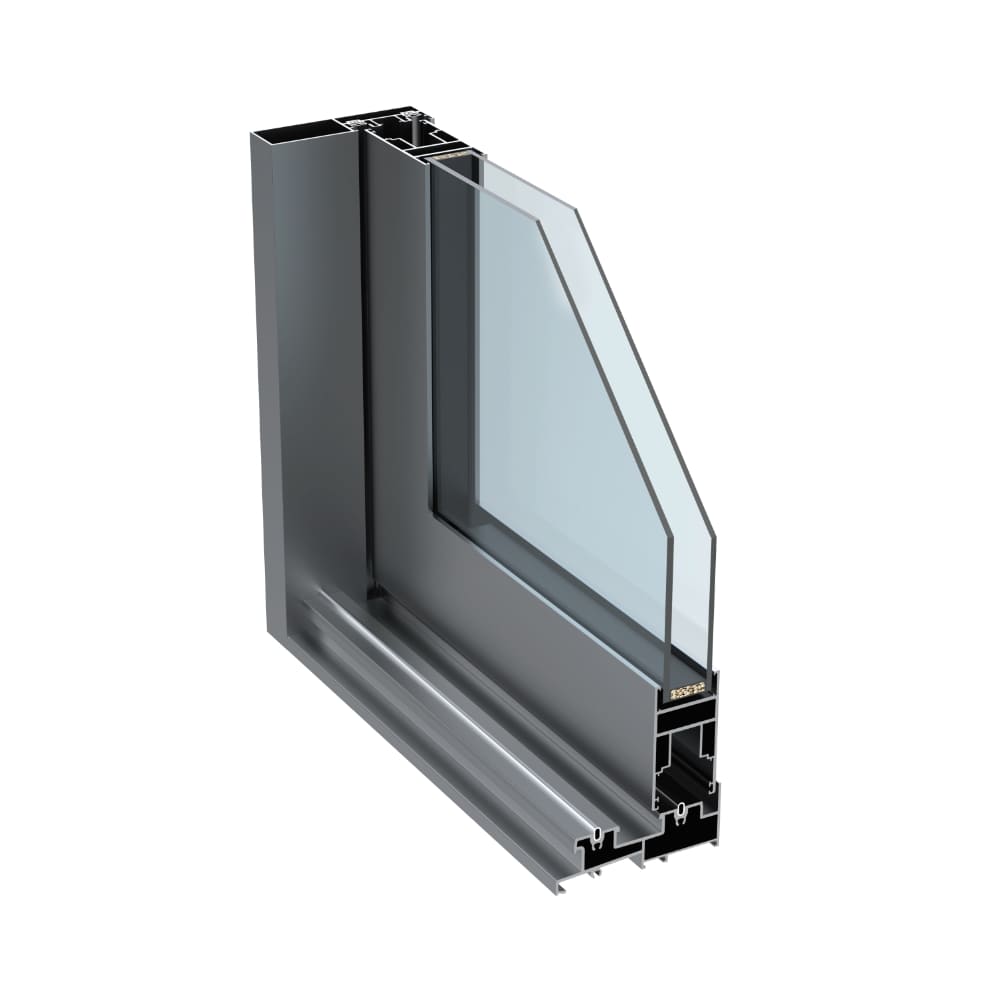

  1. 6063 T5 aluminum profile, main wall thickness 2.6mm, second rail 131mm, third rail 196mm, door leaf structure size 92 * 50mm
  2. Minimum chargeable area: 1.8 m²/fan [averaged by the entire frame]
  3. European standard soft and hard composite foam rubber strip
  4. The fan is embedded in the frame structure, and the opening part is sealed with multiple layers of rubber strips and clip type sealing wool strips
  5. Standard configuration: 5+27A (fluorocarbon gray)+5 double-layer tempered reinforced glass
  6. Suggested size for opening the fan (box): 1200 wide * 2500 high
  7. Minimum fan size (W * H): W ≥ 600, H ≥ 2000, H/W ≤ 2.4
  8. Standard 80 # square hole black diamond mesh
  9. Standard high waterproof rail+stainless steel rail; Optional copper rail (no rail), optional low level rail+stainless steel rail
  10. Not standard with handle, optional handle requires additional charge; When the area of a single fan is ≥ 3.0m², an average of 600 large handles will be given for every 2 fans
  11. Lightweight optional OPK buffer, the above unit price is one-way buffer (fan width>600), two-way buffer (fan width>1000) price * 2 times. (aspect ratio H/W<2.4)
  12. Ordinary push-pull load-bearing pulley system: stainless steel composite four-wheel, single fan maximum load capacity of 120KG
  13. Enhance the push-pull system: The fan width should not be less than 850mm, and the height should not be less than 2000mm; Standard configuration: One set of upgraded system accessories+indoor handle+outdoor buckle
  14. The basic version of the electric system includes accessories such as a power receiver, wireless remote control, outdoor infrared probe, and indoor wireless button
  15. Surface treatment process warranty for 15 years

Regular Colors

Carbon Ash
Skin White
Elite Coffe
Champagne Grey
