NA T52

6063 T5 aluminum profile, six track frame structure depth of 140mm, track thickness of 2.0mm-2.5mm, average thickness of 2.2mm, window sash structure depth of 52 * 34mm, average thickness of 1.6mm
European standard EPDM rubber strip [glass outer composite foam rubber shock-absorbing sealing strip+glass inner shock-absorbing sealing strip]
The fan is embedded in the frame structure, and the opening part is sealed with multiple layers of rubber strips and clip type sealing wool strips
Hidden ladder drainage structure, with butyl rubber professional waterproof gasket at the end of the track, with a service life of over 15 years and ultra-high water tightness
Standard configuration: 5+16A (fluorocarbon gray)+5 double-layer tempered reinforced glass;
Opening fan (frame) size: 350 ≤ W ≤ 3000, 500 ≤ H ≤ 1500. The maximum size of the window fan height and width cannot be made simultaneously, 0.35 ≤ height to width ratio ≤ 0.7, single fan area ≤ 3.6m²
Customized silver automatic one letter lock+anti swing and anti drop upper wheel
Suspended concealed six track design, double row load-bearing ground wheels
Surface treatment process warranty for 15 years

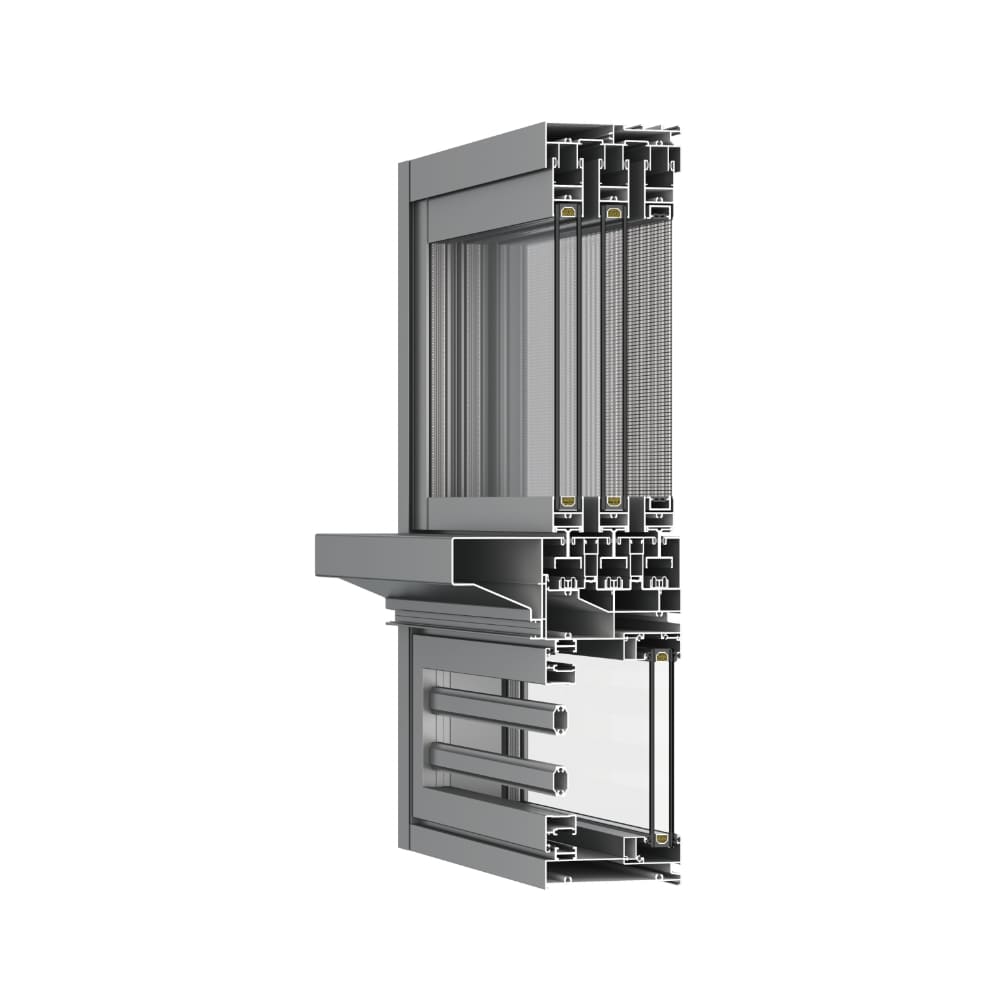

SUSPENDED SIX TRACK SLIDING WINDOW
