NA A3

6063 T5 aluminum profile, main wall thickness 1.6mm, depth of second rail frame structure 98mm, depth of window sash structure 45 * 34mm
European standard Haida EPDM rubber strip [glass outer composite foam rubber shock-absorbing sealing strip+glass inner shock-absorbing sealing strip]
The fan is embedded in the frame structure, and the opening part is sealed with multiple layers of rubber strips and clip type sealing wool strips
The stepped drainage structure and the end of the track are equipped with professional waterproof gaskets made of butyl rubber, with a service life of over 15 years and ultra-high water tightness
Standard configuration: 5+15A (fluorocarbon gray)+5 double-layer tempered glass reinforced glass
Open the fan (box) size one: 800 * 1400, size two: 900 * 1500
Minimum fan size (W * H): W ≥ 350, H ≥ 350, H/W ≤ 2.0
Standard 0.18 metal mesh; Optional imported fiber mesh
Customized silver automatic straight lock+anti swing and anti fall upper wheel+ground wheel
Surface treatment process warranty for 15 years

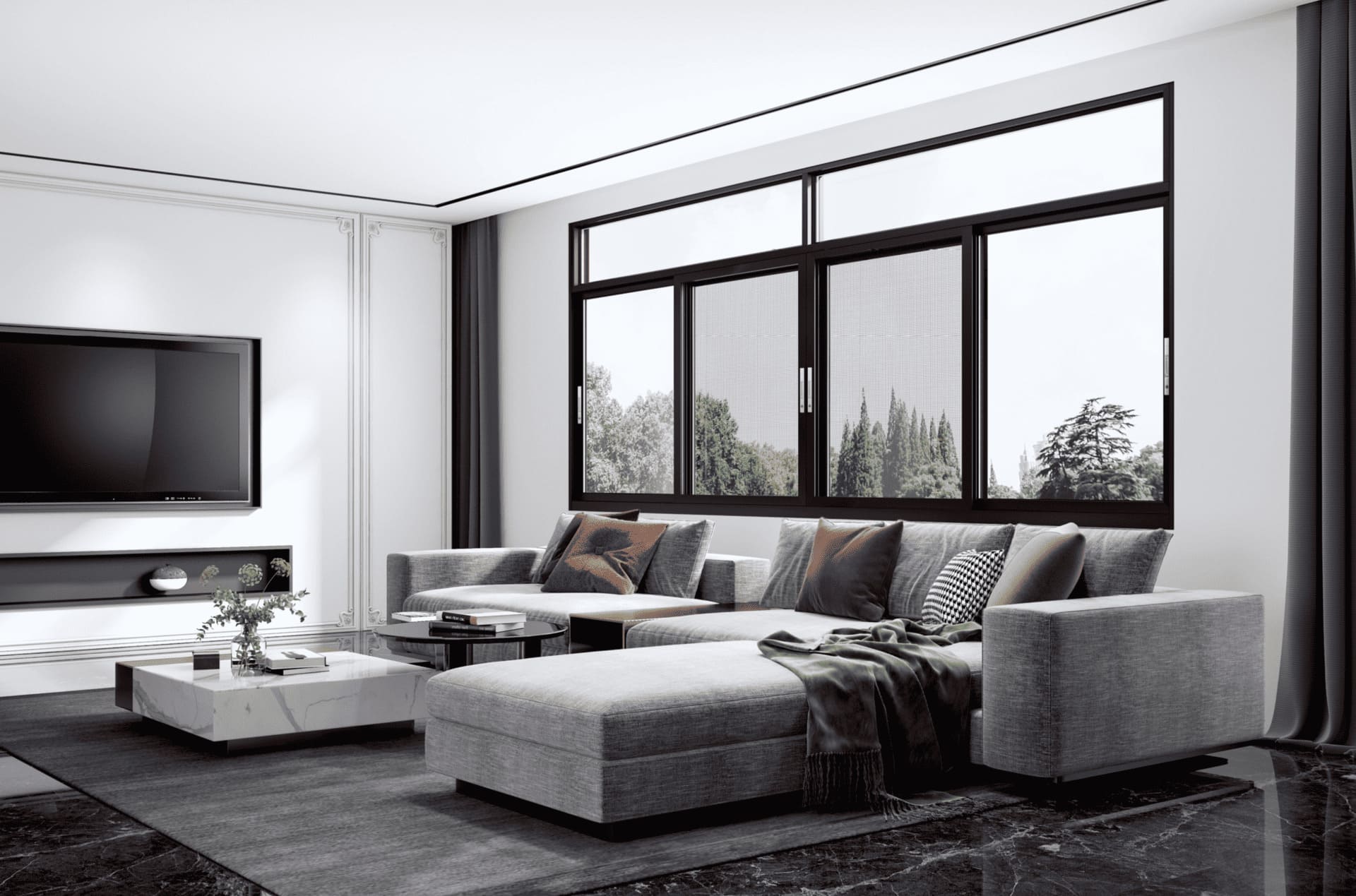

SLIDING WINDOW
